Pneumatic brakes

Specifications

  • very simple to use even in the most demanding applications
  • lightweight aluminum body with high heat absorption
  • the most compact solution in terms of size, braking torque and heat dissipation
  • light weight and easy installation in spaces with limited space

Contact

For more information, contact our colleague

Contact

Detailed specification

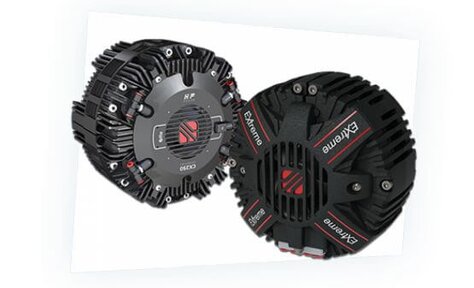

The original RE-COMBIFLEX brakes are air operated brakes that are characterized by very simple use even in the most demanding applications. The brake consists of a lightweight aluminum body with high heat absorption, a turbine brake disc and brake shoes that generate the braking torque.

The brakes are currently the most compact solution in terms of size, achieved braking torque and heat dissipation. Compared to the outdated multi-disc brakes from the early 1970s, the aluminum body ensures light weight and easy installation in areas with limited space.

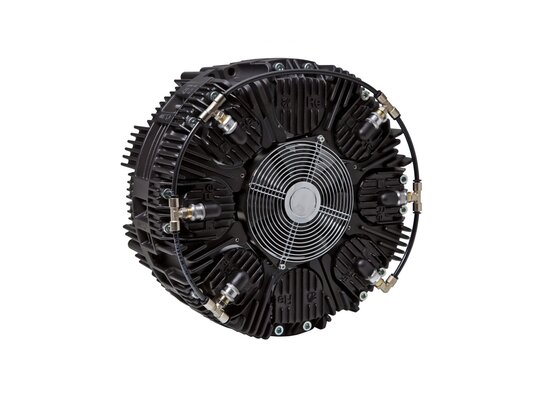

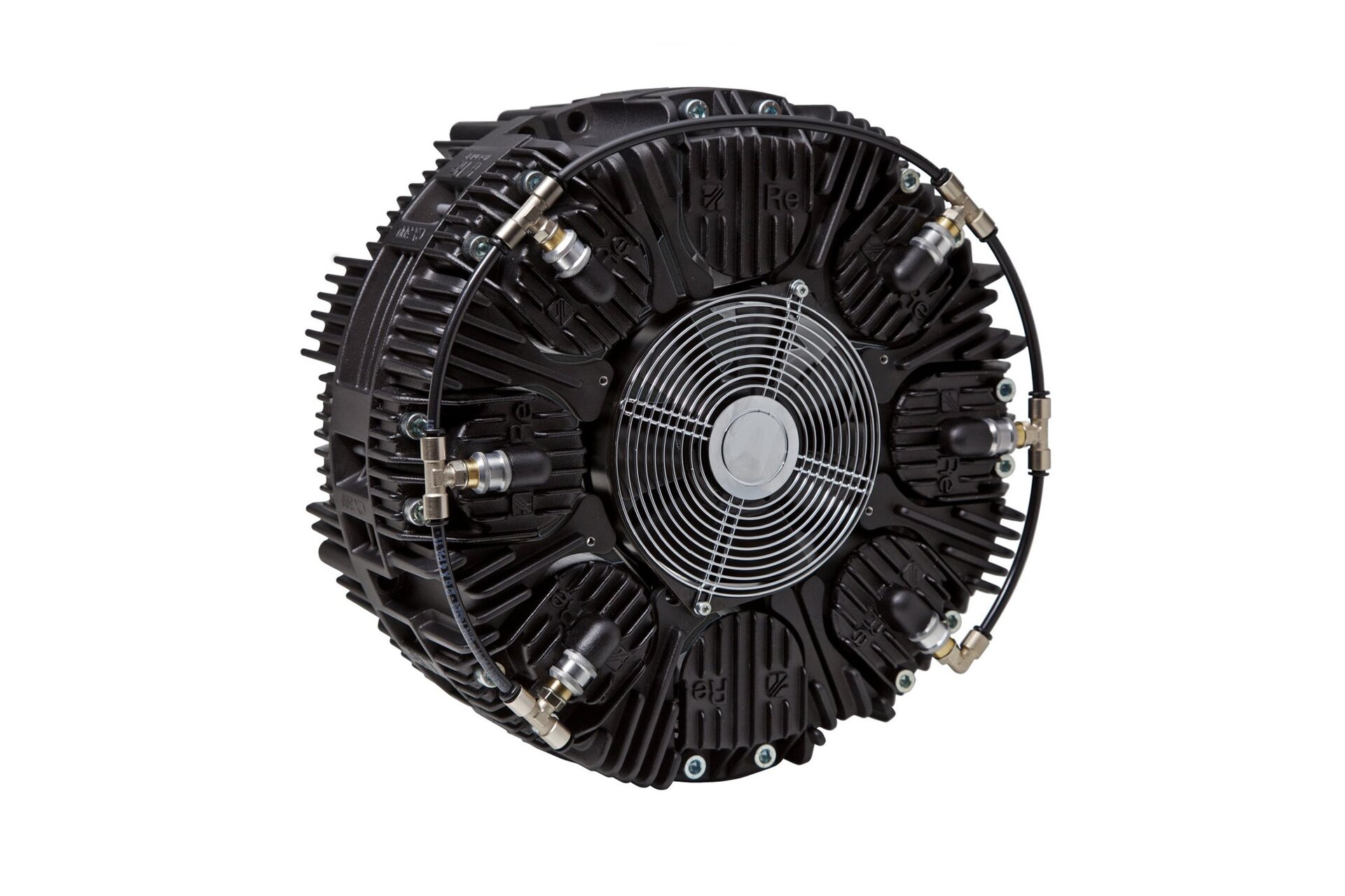

The brake can be supplemented with a powerful fan that blows air into the turbine disc and rib profile and thus guarantees that the parts of the brake do not overheat and have a long service life.

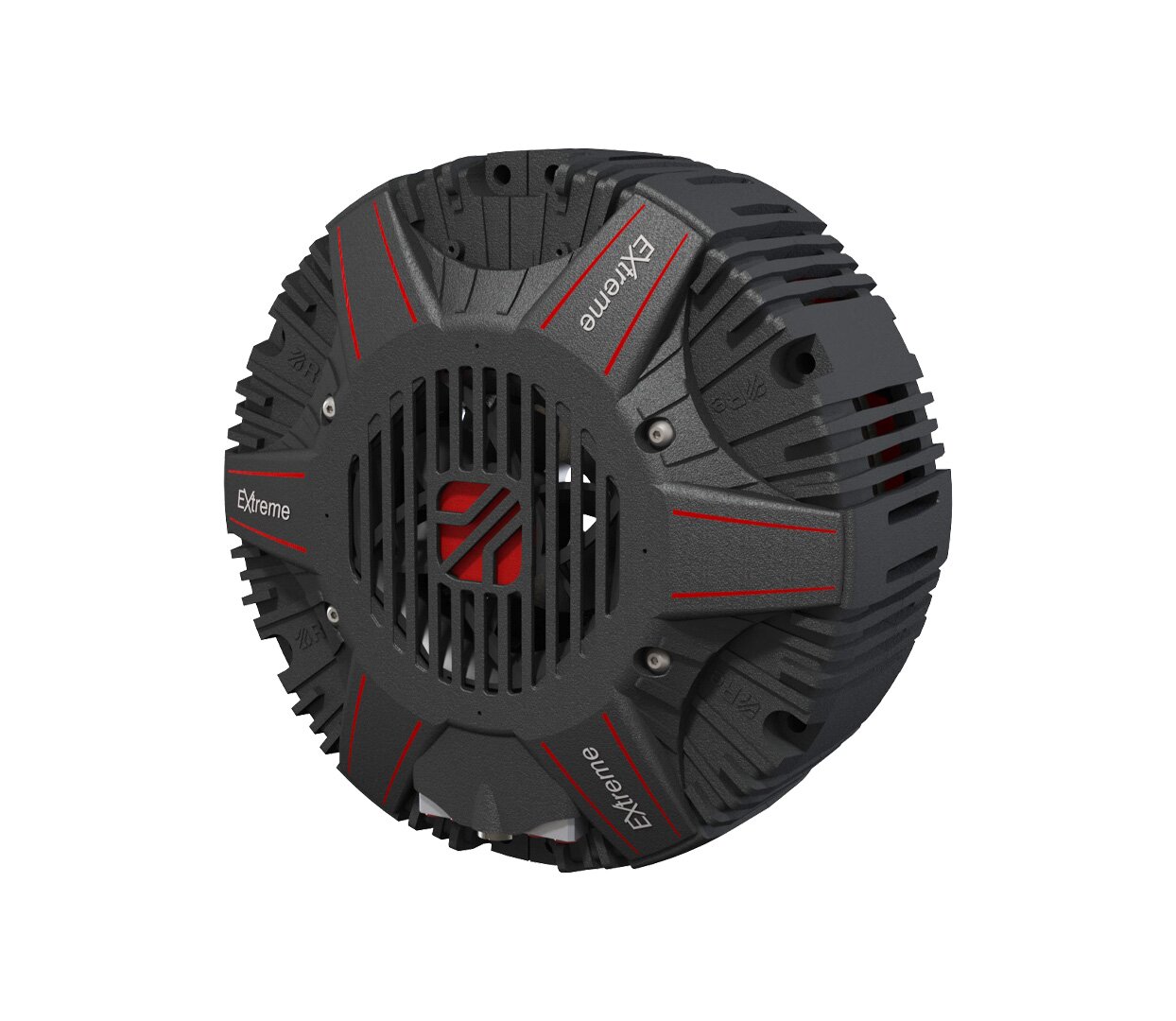

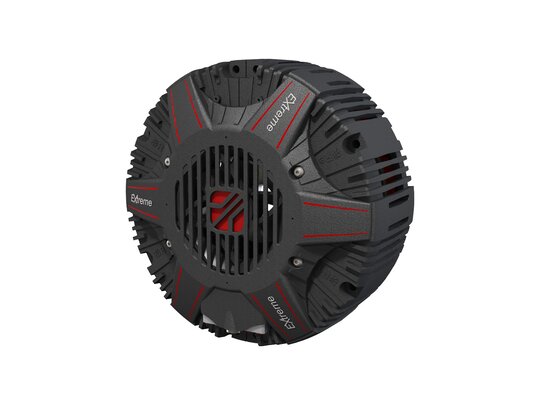

  • EXtreme brakes

    An absolute novelty are EXtreme pneumatic brakes, which are characterized by the coolest operation and up to seven years of brake lining durability.

Technical parameters

Model Number of pistons Torque Air pressure Brake weight Heat dissipation Heat dissipation with fan Drawing 3D model
CX.200 up to 4 472 Nm 0.3-6 bar 18 kg 0.7 kW 1.5 kWDrawing

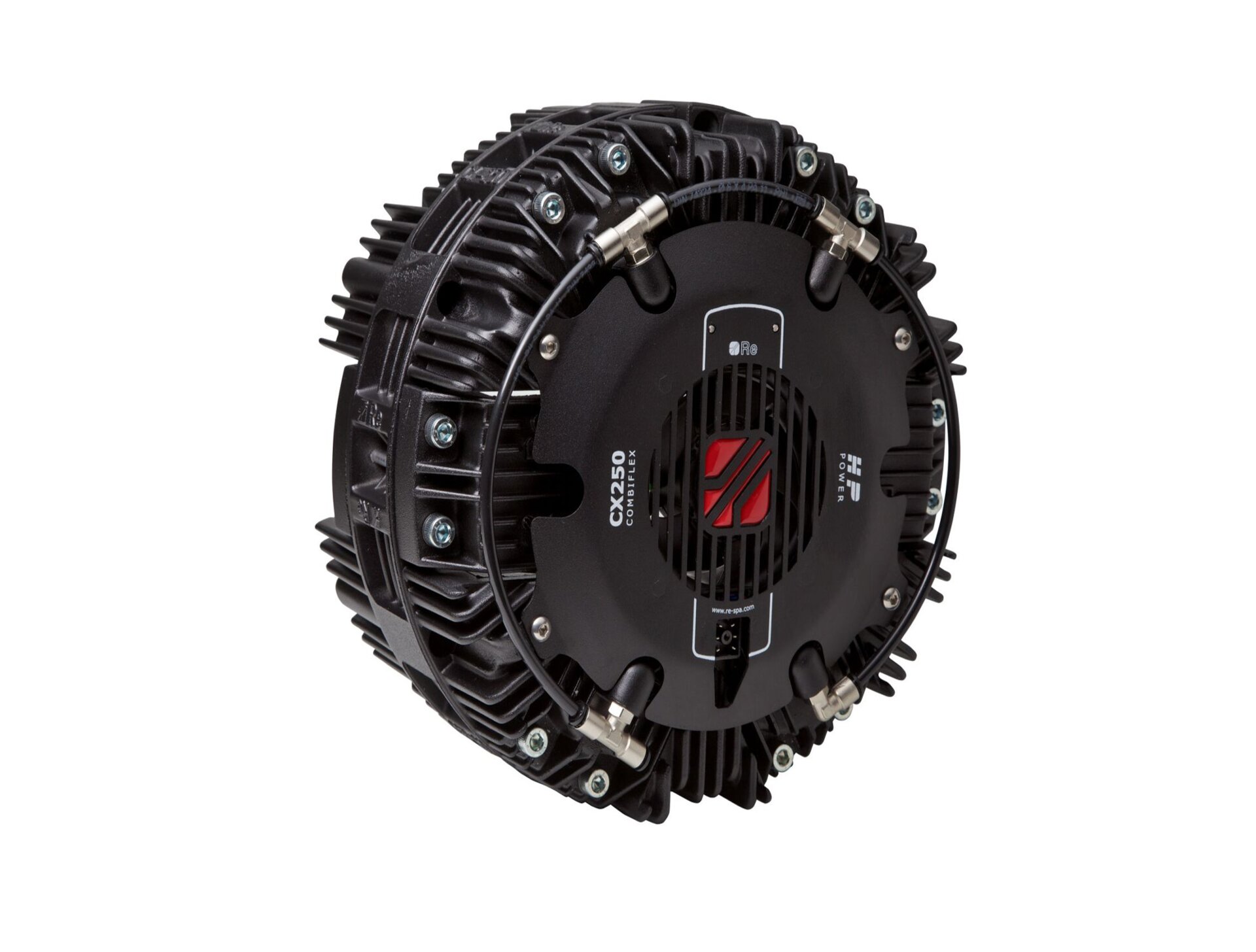

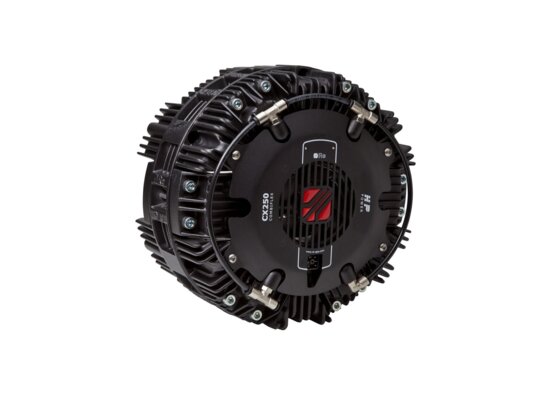

CX.250 up to 6 960 Nm 0.3-6 bar 20 kg 1.3 kW up to 5 kWDrawing3D

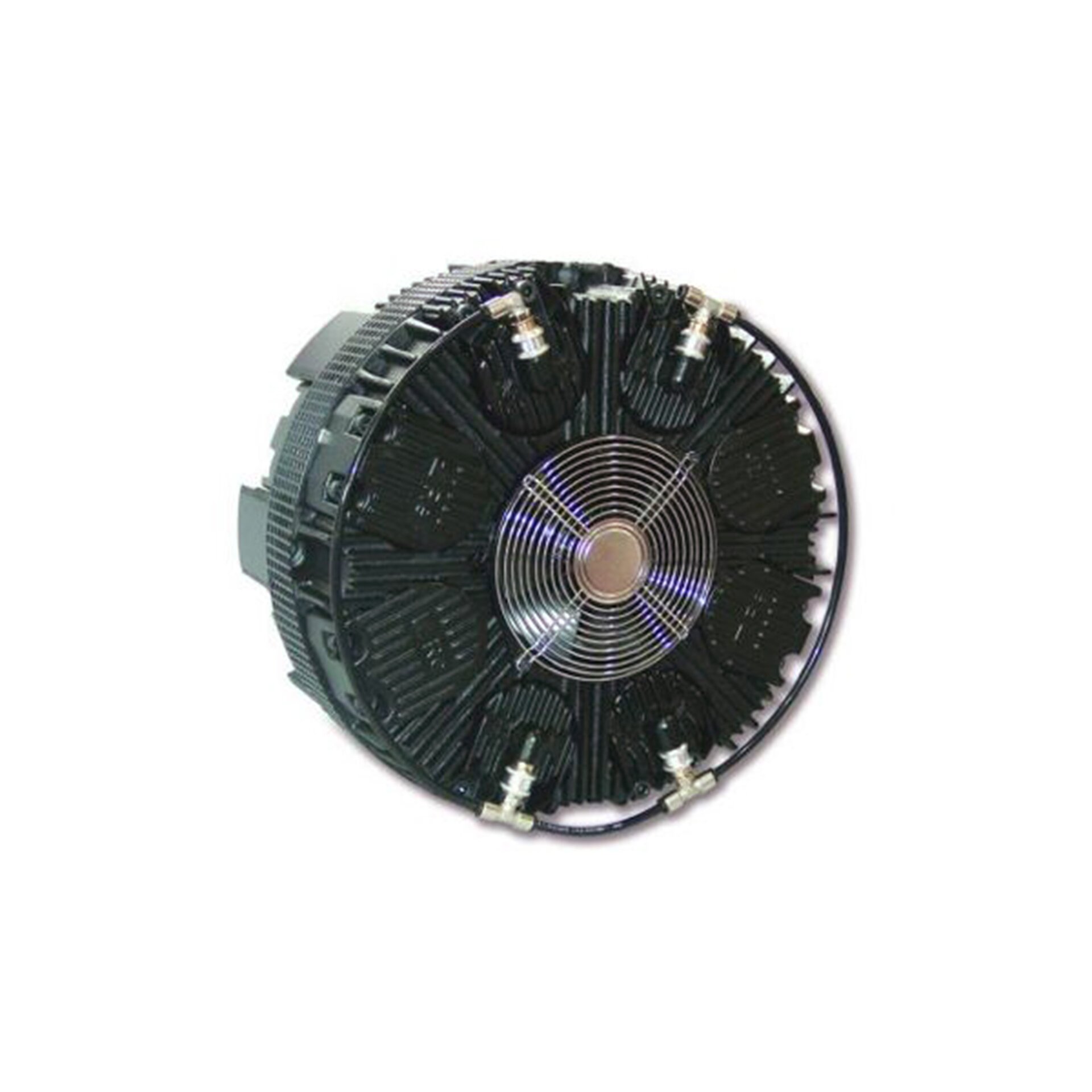

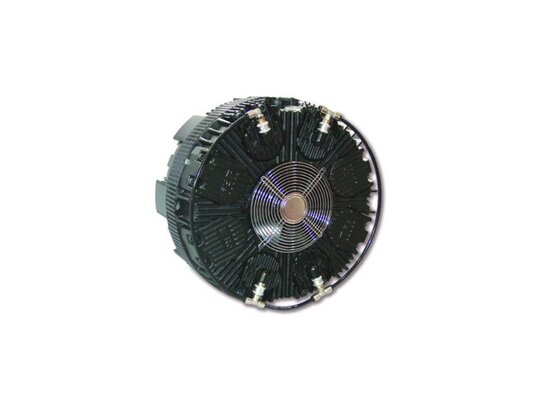

CX.300 up to 8 1520 Nm 0.3-6 bar 26 kg 1.8 kW up to 5.5 kWDrawing
CX.400 up to 12 3240 Nm 0.3-6 bar 40 kg 2.8 kW 8.8 kWDrawing
CX.500 up to 14 4620 Nm 0.3-6 bar 53 kg 3.5 kW 12.6 kWDrawing
XT.7 up to 4 352 Nm 6 bar 6.5 kg - 2.5 kWDrawing3D
XT.10 up to 6 1500Nm 6 bar 19 kg 2 kW 6 kWDrawing3D
