Pneumatic knife holders

Specifications

  • cutting material with high cut quality at high speeds
  • you can set and control the three most important cutting parameters
  • holders with a minimum cutting width from 25 mm and holders for speeds up to 3000 m/min are available
  • we offer holders that are a direct replacement for competing holders Tidland, Dienes, Espo and Helios
  • the advantage is a more sophisticated solution, simple replacement and savings of up to 30% of the price

Contact

For more information, contact our colleague

Contact

Detailed specifications

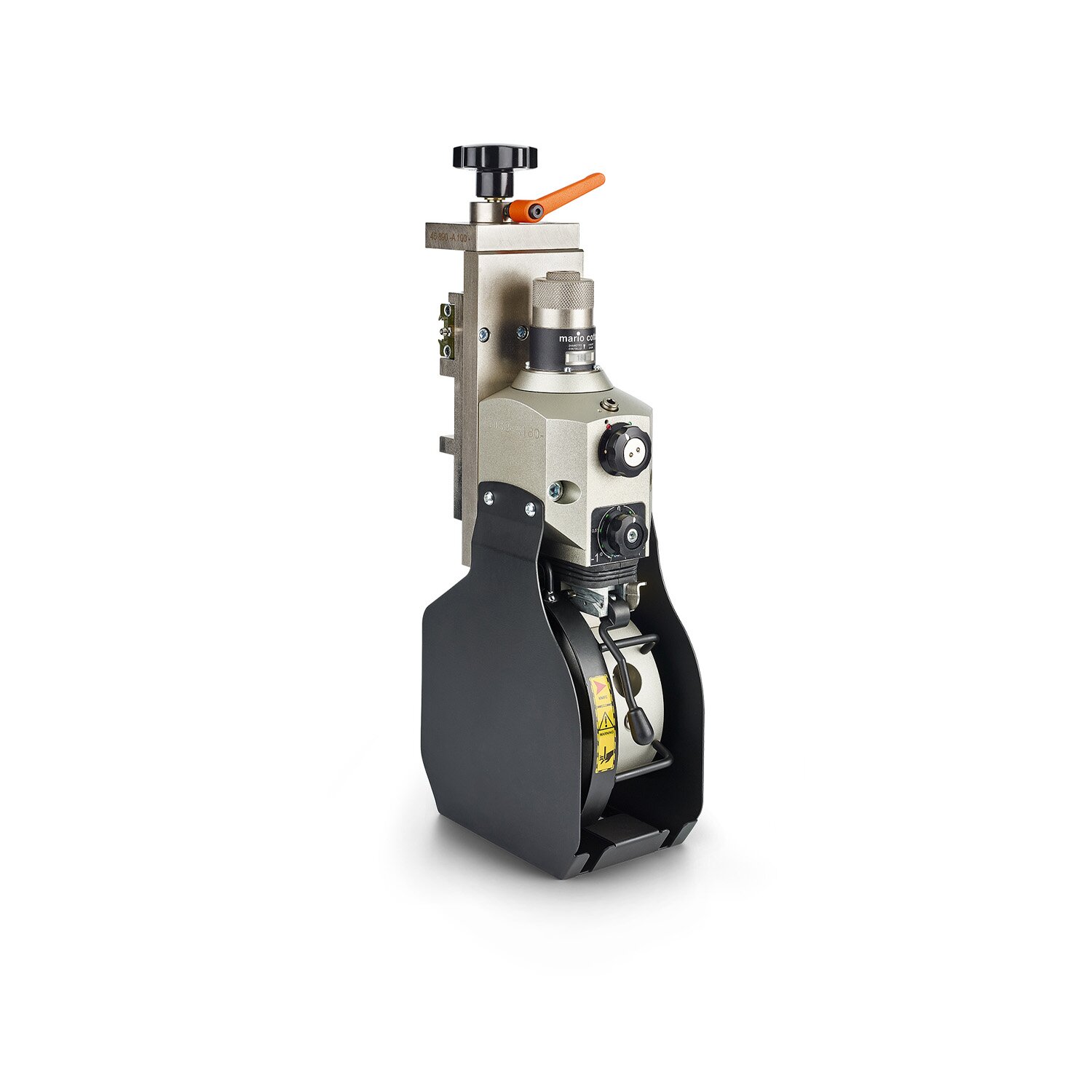

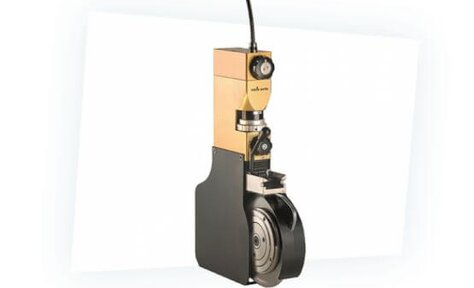

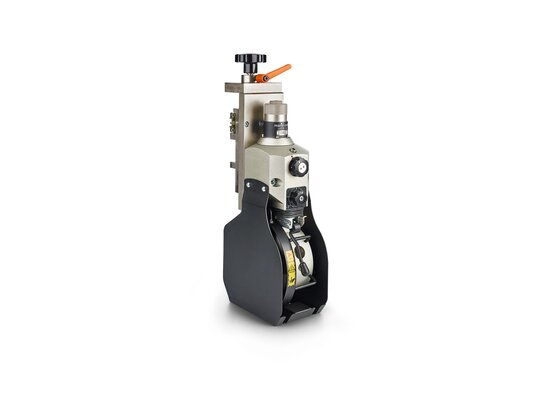

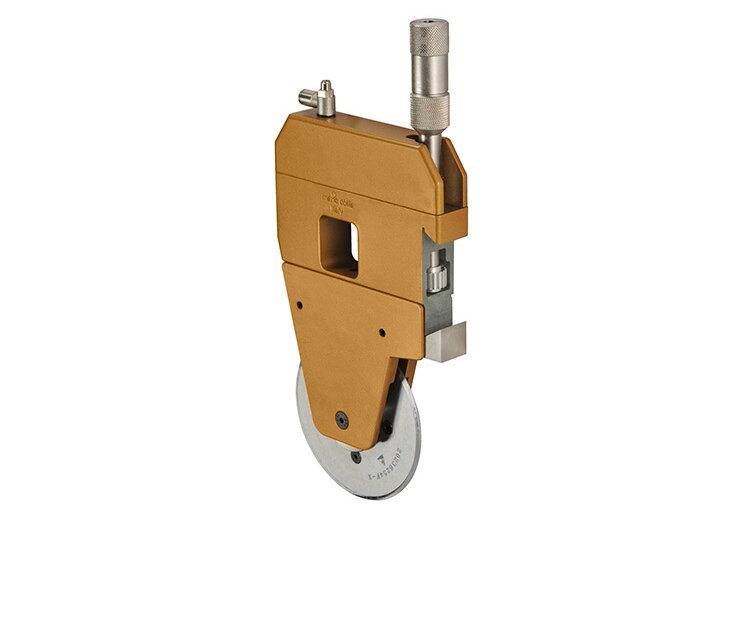

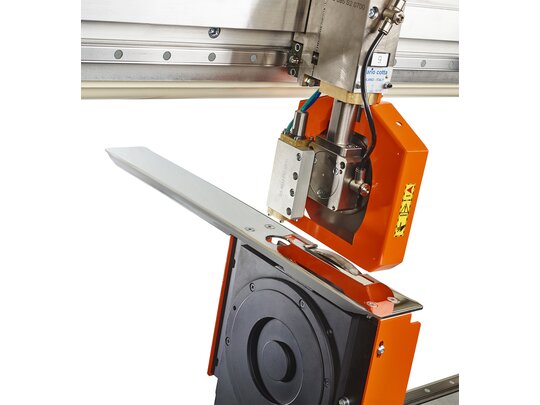

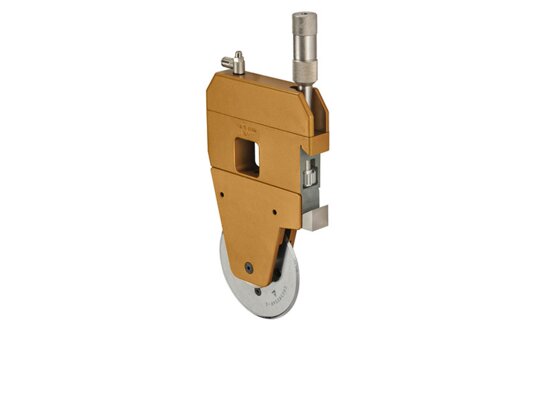

Pneumatic knife holders are an advanced solution for cutting material with high cutting quality at high speeds. After supplying the air, the holder goes down and is pressed to the side against the lower knife. On the holder, you can set and control the 3 most important cutting parameters, which are the overlap of the upper knife compared to the lower one, the inclination of the upper knife to the lower one and the constant pressure of the upper knife to the lower one.

Holders with a minimum cutting width from 25 mm and holders for speeds up to 3000 m/min are available. The holders have various special enhancements, including a removable cartridge for quick blade changes and a graduated scale for adjusting the diameter of the blade after sharpening.

We offer holders that are direct replacements for competing Tidland, Dienes, Espo and Helios holders. The advantage for you is a more sophisticated solution, simple replacement and savings of up to 30% of the price.

Technical parameters

ModelWidthStrokeKnife diameterMax. speedDrawing3D model
TINY25 mm17 mm90/105 mm25, 30 mmDrawing
PPS50 mm25 mm130/150 mm19-30 mmDrawing
GOLD50 mm25 mm130/150 mm25 mmDrawing

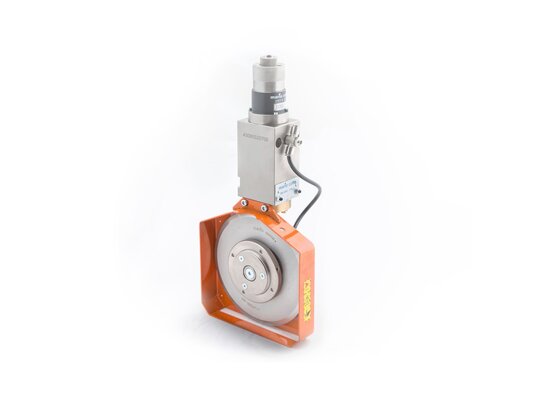

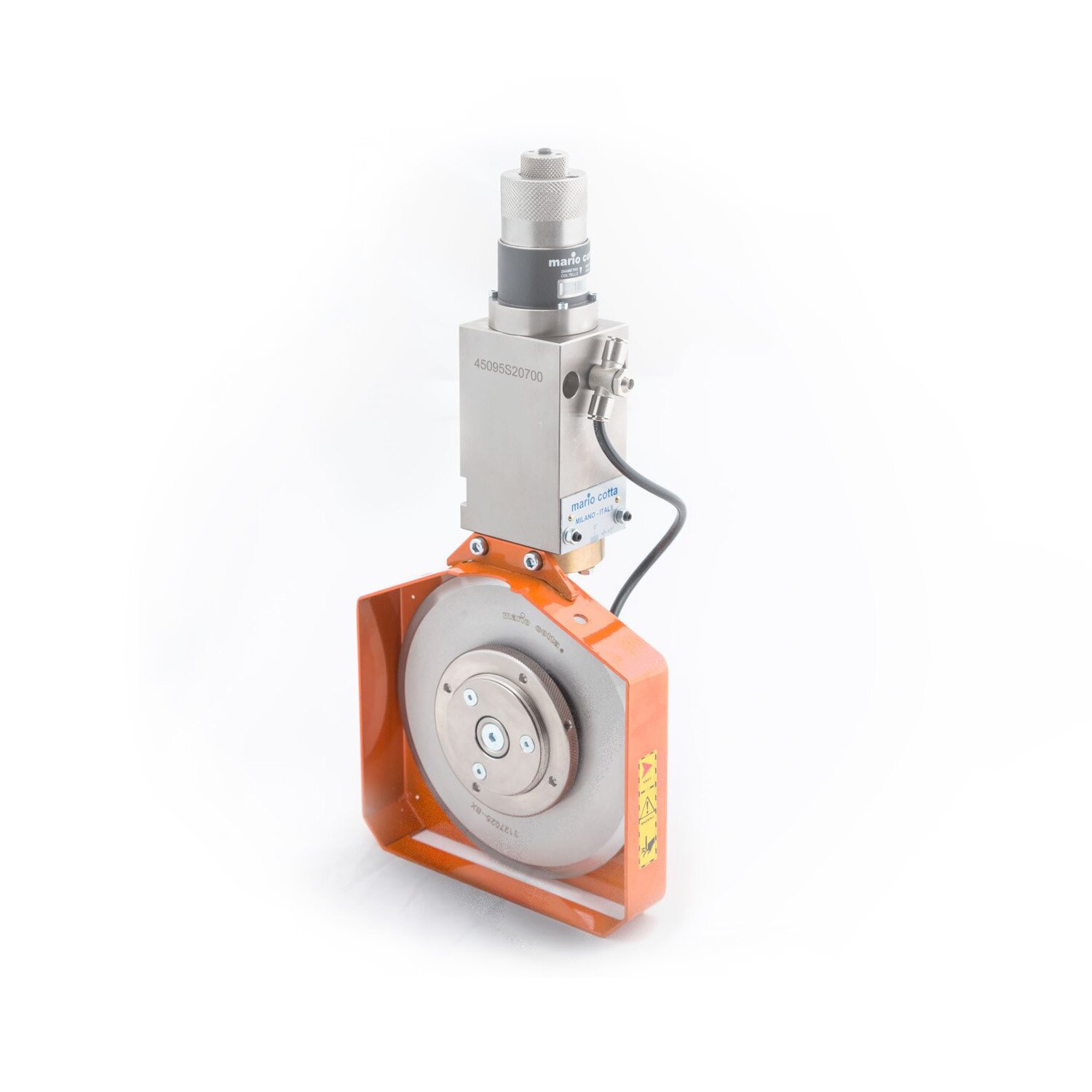

PPMS60 mm25 mm150/180 mm40 mm
PPL100 mm25 mm180/200 mm30-50 mm
910KLP100 mm25 mm180/200 mm30-40 mmDrawing
