Pneumatic safety chucks

Detailed specifications

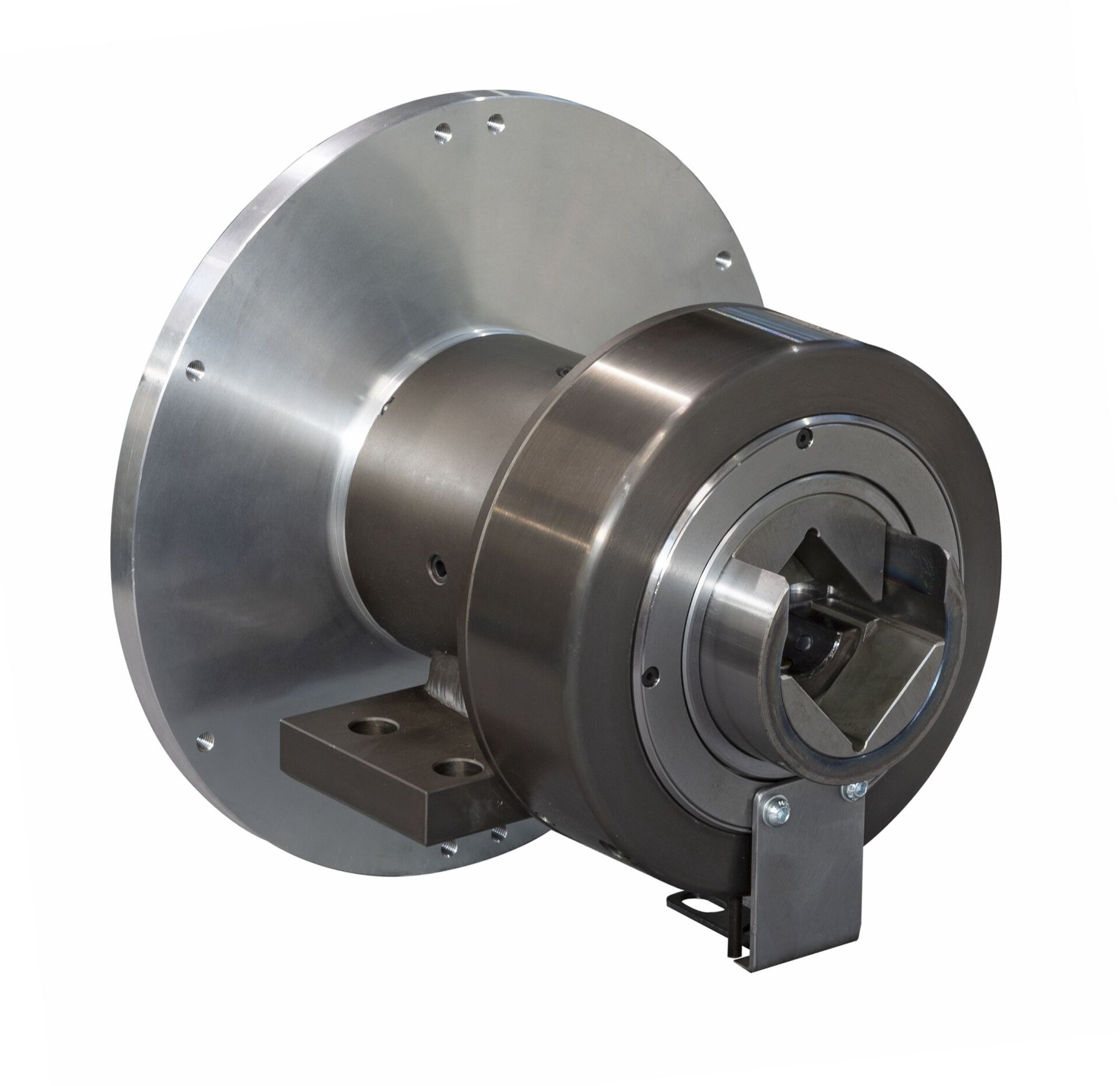

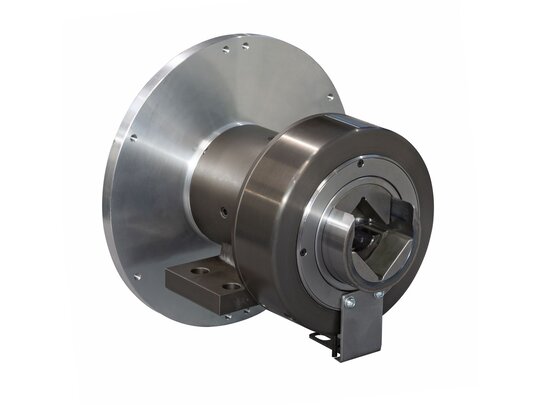

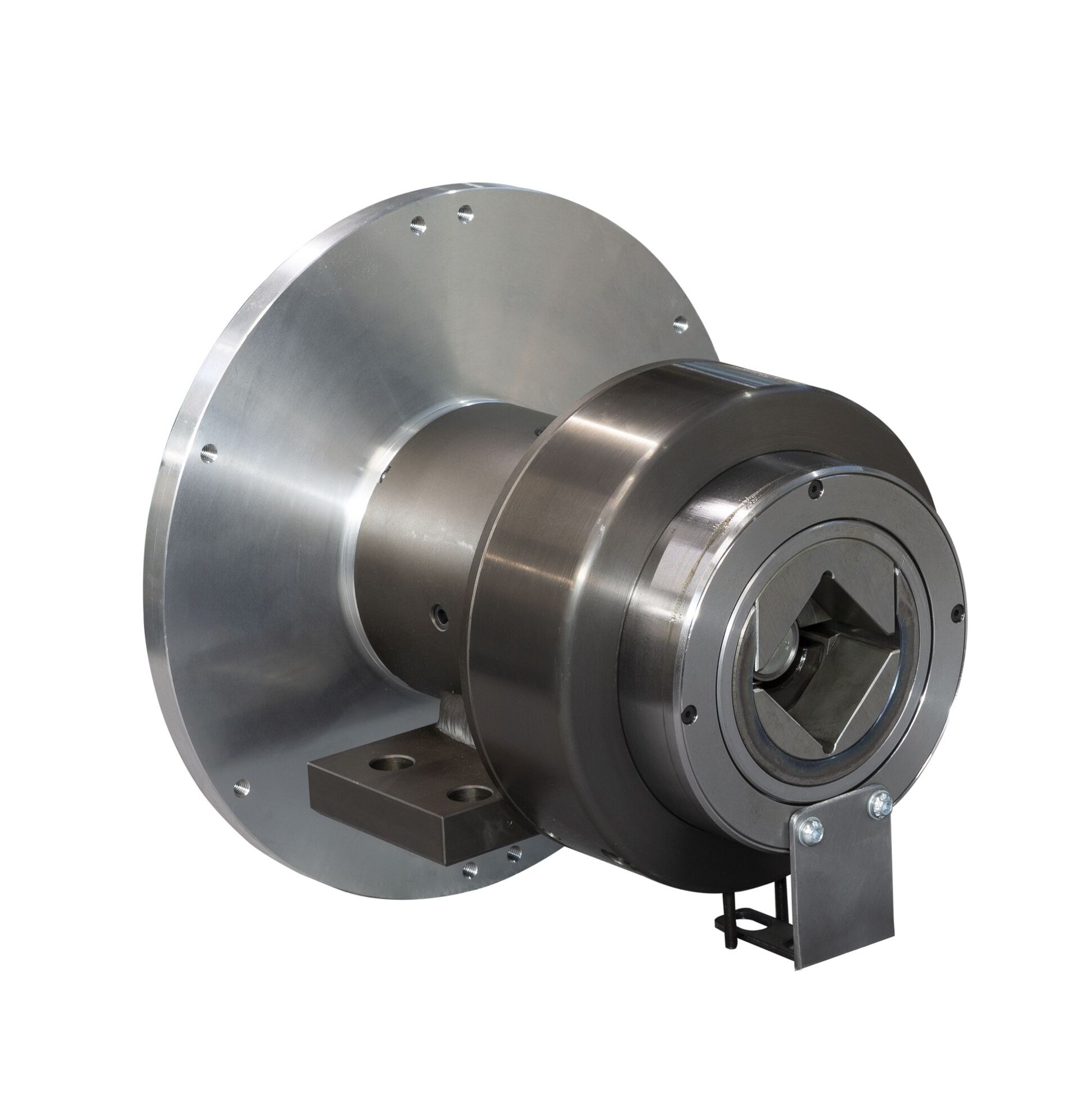

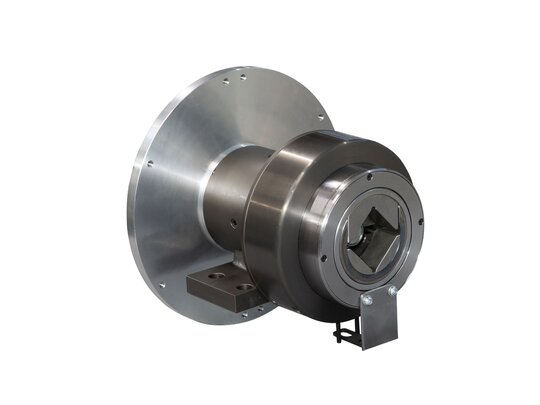

Safety hinged bearings allow very easy loading and unloading of the roll in and out of the machine by opening the flange and inserting the roll into the jaws. One output shaft bearing can be installed for drive or brake. The standard version is a square of 40 x 40 mm, we also have other sizes on offer.

For all bearings, foot and flange designs and output shafts are available exactly according to your specifications. Bearings are often used on winding or unwinding stands and wherever torque needs to be transmitted in an axis.

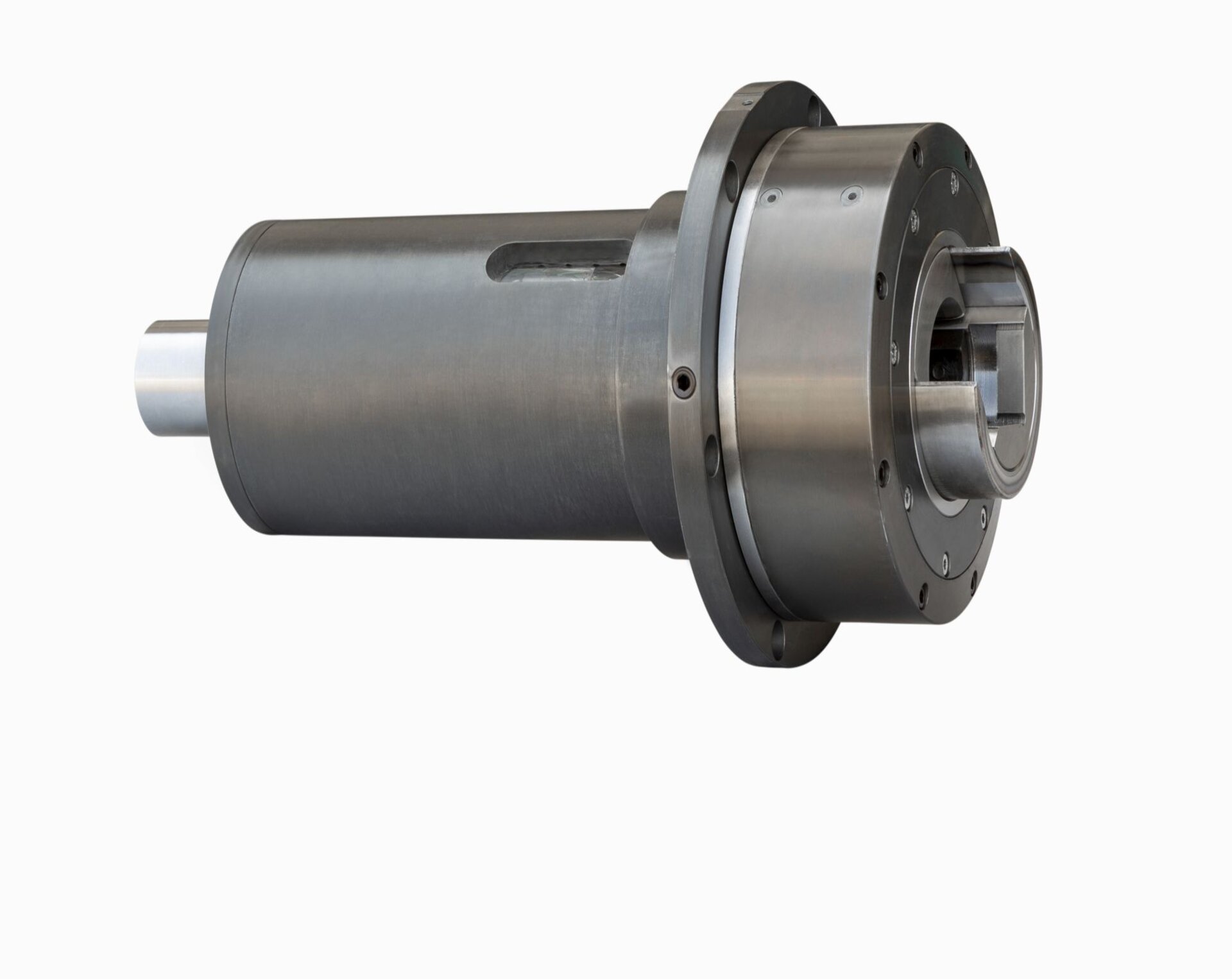

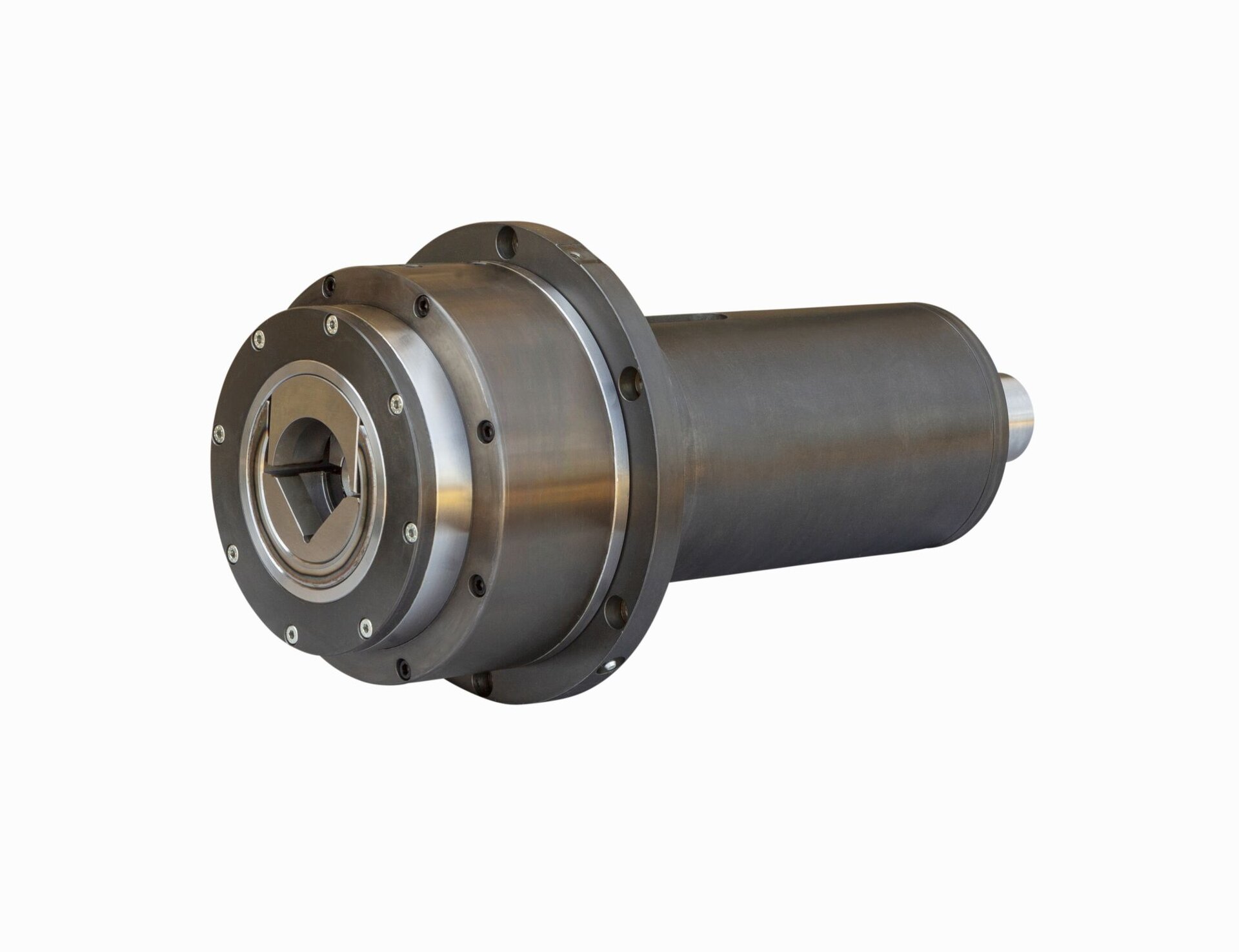

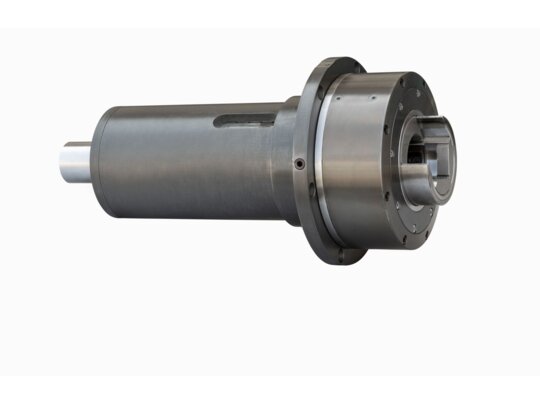

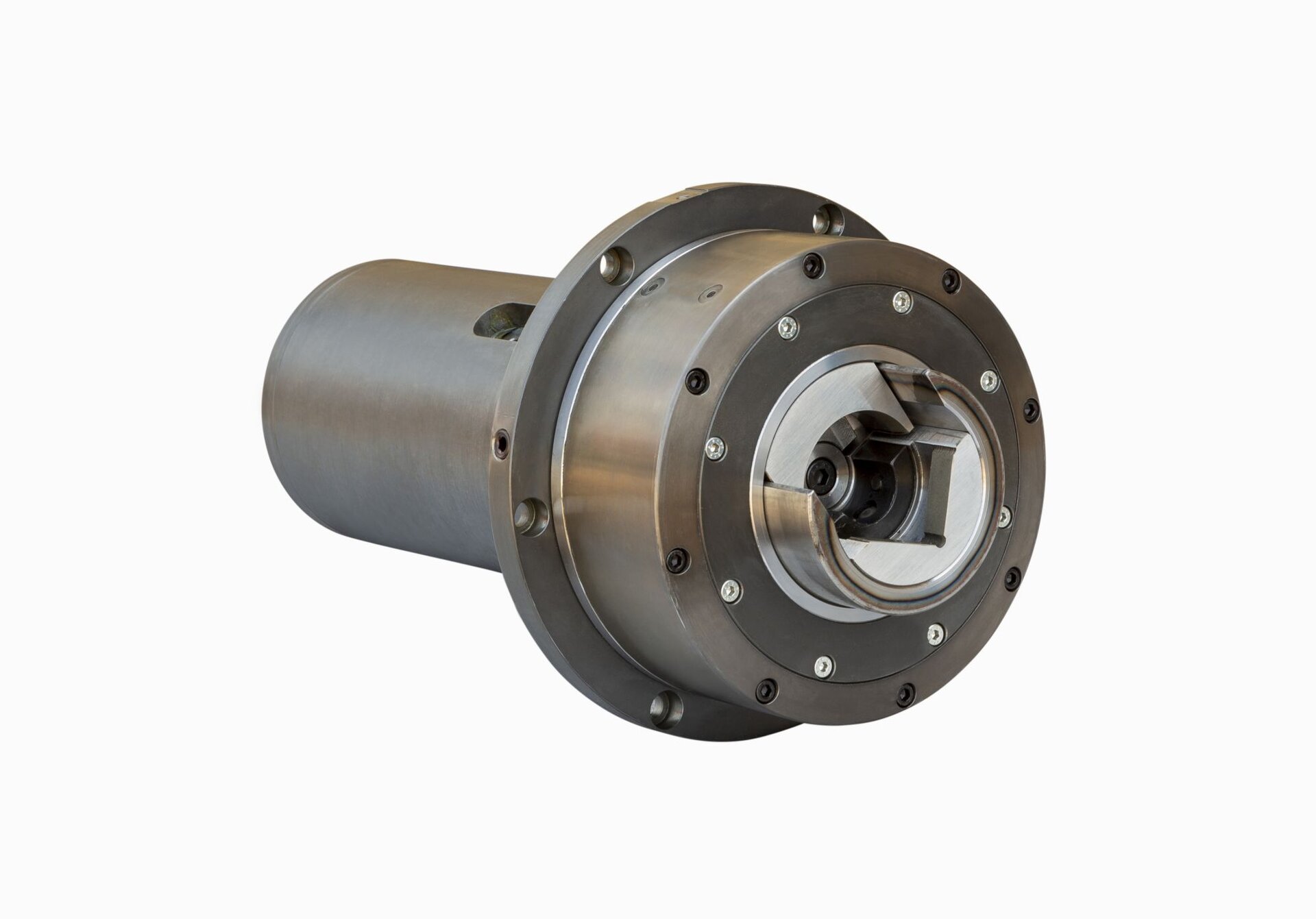

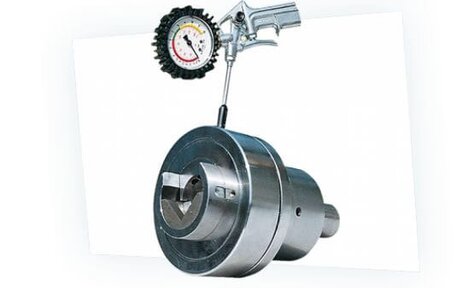

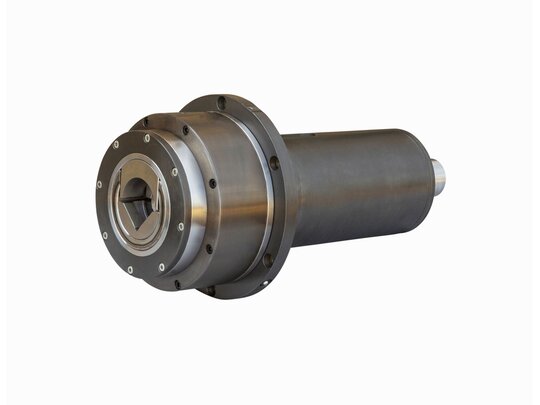

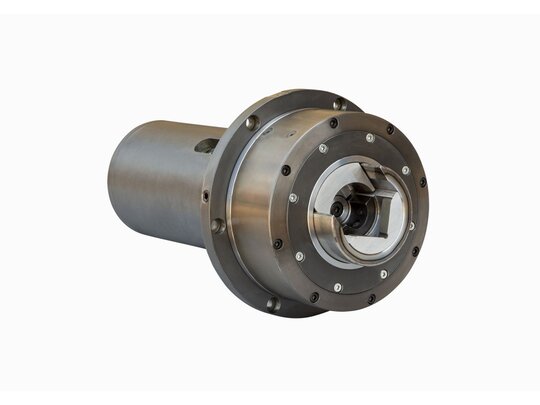

Pneumatically operated bearings are mainly used on automatic rewinding stands, Turret winding and unwinding machines and wherever it is necessary to mechanically open and close the take-up flange and at the same time check its safety condition.
